Blue Ox Aventa Lx Tow Bar 2 1/2"
Blue Ox Aventa Lx Tow Bar 2 1/2"
Product Images Product Video

Blue Ox Aventa Lx Tow Bar 2 1/2"

Part Number: 944114-delete
Manufacturer Number: BX7450
Out of Stock
Why buy from RV Parts Country?
  • Safe shopping
  • Award-winning customer service
  • Quick shipping
*We'll ask for shipping info at checkout
Retail Price$889.95
Your Savings:$29.83
Your Price:

UPC Code



Blue OX


Vehicles & Parts > Vehicle Parts & Accessories


Hitch and Tow

Google Shipping


Blue Ox Aventa Lx Tow Bar 2 1/2"

The motorhome mounted Blue Ox Aventa® LX has a ball in socket design that incorporates a spherical joint instead of the traditional bolted together flex joint. This cutting edge design reduces wear points and allows for an extremely strong and durable attachment between the coach and the towed vehicle. With its 10,000 lb. Class IV rating, you can tow just about anything. All steel construction. 42 lbs. Base plate not included, order separately. (Never exceed the towing or weight capacity of your motorhome). Available to fit 2" (94-4105) or 2-1/2" (94-4114) receiver hitches. Special order item, call for availability.


  • Cutting Edge Ball-In-Socket Design
  • Off-Set Triple Lugs To Better Align Towing Forces
  • Self Tightening Pivot Connection
  • Rubber Boots To Protect From Road Grime
  • Dependable Steel Construction. Easy Fold-Away Tow Bar Mounts And Stores On Back Of RV
  • For Use With Towed Vehicles Up To 10,000 Pounds. Hook Up Is A Cinch - The 360 Degree Swivel Allows You To Be Out Of Alignment Or On Uneven Surfaces
  • Legs Collapse And Extend To Lock For Easy Hook-Up. The Ultimate In Quick Disconnecting
  • Limited 3 Year Warranty
  • Self-aligning design - hook up to base plates on towed vehicle and drive RV forward
    • Arms extend into rigid, tow-ready position and automatically lock in place
  • Triple-lug connection - sturdy brackets on the end of each tow bar arm provide reinforced connection to base plates
    • Each arm attaches and detaches from base plate with 2 easy-to-access pins
  • Simple, secure storage alongside motor home
    • Arms fold up, rotate down and secure in place horizontally with the integrated hold-up bolt
  • Durable steel construction
  • Rubber boots protect telescoping arms from dirt and grime
  • Safety cables included
  • Made in the USA


Weight: 13.0000
Adjustable: Yes
Class: Class IV
Tow Capacity: 10000 Pound
Receiver Mount Size: 2-1/2 Inch
Color/ Finish: Black Painted
Material: Steel
Collapsible: Yes
Mount Location: Baseplate
Includes Safety Cables: Yes

Ball-In-Socket Flex Joint

Tow bars are notoriously difficult to connect and disconnect, especially on uneven surfaces. Rigid tow bars have arms that are essentially locked in place so you have to drive your towed vehicle into the exact position necessary for hookup. But with the Aventa LX, you can connect from the approximate towing position, even on unlevel ground. The unique ball-in-socket joint allows the tow bar arms to swivel and pivot just enough to compensate for a slight height difference. And because it's a spherical joint as opposed to the traditional, bolt-together flex joint, there will be less wear and tear on your tow bar over time.

Self-Aligning Design

The convenient, self-centering arms help to make hookup a snap as well. Once you have connected the tow bar to the base plates on your towed vehicle, simply drive your RV forward until the tow bar arms fully extend and lock in place.

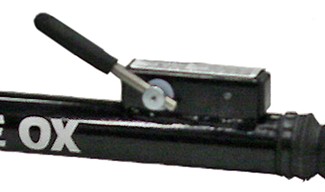

Non-Binding Release Latch

Non-Binding Tow Bar

Blue Ox has defeated the age-old problem of binding by creating a tow bar that is just as easy to release as it is to hook up. Simply press down the locking handles on the tow bar arms until the internal latch disengages. By releasing some of the static pressure from your tow bar you can flex its arms just enough to make disconnecting from the base plates a snap, even when it's out of level with your RV.

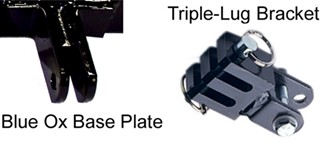

Triple-Lug Bracket

Triple-Lug Connection

Blue Ox base plates on your vehicle are equipped with two tabs each that connect to the brackets on the ends of the tow bar arms. These brackets are referred to as "lugs." The unique triple-lug design of the Aventa LX tow bar creates a tighter, more stable connection by surrounding both base plate tabs. The result is a sturdy, reinforced connection that is stronger and more rigid for a safer, more dependable towing experience.

Hooking up the Aventa LX to your base plates is as simple as it is secure. Just insert the triple-lug end of the tow bar arm into the base plate so that the center lug is positioned between the two tabs of the base plate. Then insert the 1/2" keeper pin through the lugs and tabs and secure it at the end with the included quick pin.

Simple Storage

The Aventa LX can be easily stored on your RV when it is not in use. After disconnecting the tow bar from your towed vehicle, push the arms of the tow bar together so that they are side by side. You can then fold them up toward the RV and insert the integrated hold-up bolt into place on the hitch connector. Then pivot the arms down so that they are held firmly in place alongside the RV, parallel to its bumper.
